Fiber wood FiberTherm Underfloor density 250kg/m³
Fiber wood thin mat density 250 Kg/m³.
Fibertherm Underfloor is a thin mat of fiber wood with optimal thermal and acoustic insulation values to be used in dry screeds and in solutions for floors and ceilings where greater acoustic insulation is needed. Ideal for traditional and elevated floors.
The Fiber wood panel FiberTherm Underfloor 250 is a fiber wood thin mat with high thermal and acoustic insulation values and with which you get a high improvement of acoustics for pre-finished parquet and laminate floors up to 19 dB.
It also has a density of 250 kg/m³.
The material is also recyclable, it is certified and made exclusively with wood from controlled forests in compliance with the FSC guidelines (Forest Stewardship Declaration).
The insulating fiber wood panel FiberTherm Underfloor 250 is also excellent when installed in thermal and acoustic insulation systems in parquet and / or laminated floors, below we list the main features:
• good impact sound insulation and high improvement of environmental acoustics;
• excellent insulation characteristics;
• high pressure resistance up to 20 t/m² - important for interlocking systems;
• long life thanks to the stable structure of the fibers;
• particularly open to diffusion;
• resistant to chemical solvents;
• easy and fast processing;
• leveling of irregularities up to 3 mm;
• suitable for underfloor heating systems;
• recyclable, ecological, environment-friendly;
• building material tested and authorized according to current European standards.
Available sizes
fiber wood thin mat with sharp edges
| Thickness | Sizes mm | kg/m² | Pieces/pack. | pack./pallet | kg/pallet |
|---|---|---|---|---|---|
| 3 mm | 790 x 590 | 0,77 | 20 | 32 | approx.265 |
| 4 mm | 790 x 590 | 1,02 | 15 | 32 | approx.265 |
| 5 mm | 790 x 590 | 1,28 | 15 | 26 | approx.265 |
| 7 mm | 790 x 590 | 1,75 | 20 | 14 | approx.265 |
Techincal characteristics
| Characteristics | Values |
|---|---|
| Density kg/m³ | 250 |
| Reaction to fire according to the standard EN 13501-1 | E |
| Coefficient of thermal conductivity λD W/(m·K) | 0,070 |
| Specific heat capacity J/(kg·K) | 2.100 |
| Resistance to vapor diffusion μ | 5 |
| sd value (m) | 0,02(4)/ 0,03(5) /0,04(7) |
| Thermal resistance RD (m²·K)/W | 0,06(4)/ 0,07(5) /0,10(7) |
| Panels identification | EN622-4SB-E1 |
| Waste code (EAK) | 030105/170201 |
Solution with Fiber wood Underfloor
Dry screed with fiber wood Base
Flooring system using fiber wood panels with high density and excellent compression resistance Fibertherm Base and cement bonded particle boards BetonWood.
Fiber wood Base and concrete screed
Flooring system using fiber wood panels Fibertherm Base with high density and high thermal insulation, concrete constructional work and cement bonded particle boards BetonWood.
Screed with fiber wood on corrugated sheet
Screed system on corrugated metal sheet with high density and high compression resistance fiber wood Fibertherm Base and a double layer of cement bonded particle boards BetonWood.
Radiant screed with fiber wood Base
Radiant natural screed BetonRadiant with thermal and acoustic insulation in high compression resistance fiber wood panels Fibertherm Base.
Radiant screed with fiber wood Base on wooden floors
Radiant natural screed BetonRadiant with thermal and acoustic insulation in high compression resistance fiber wood panels Fibertherm Base on wooden floors.

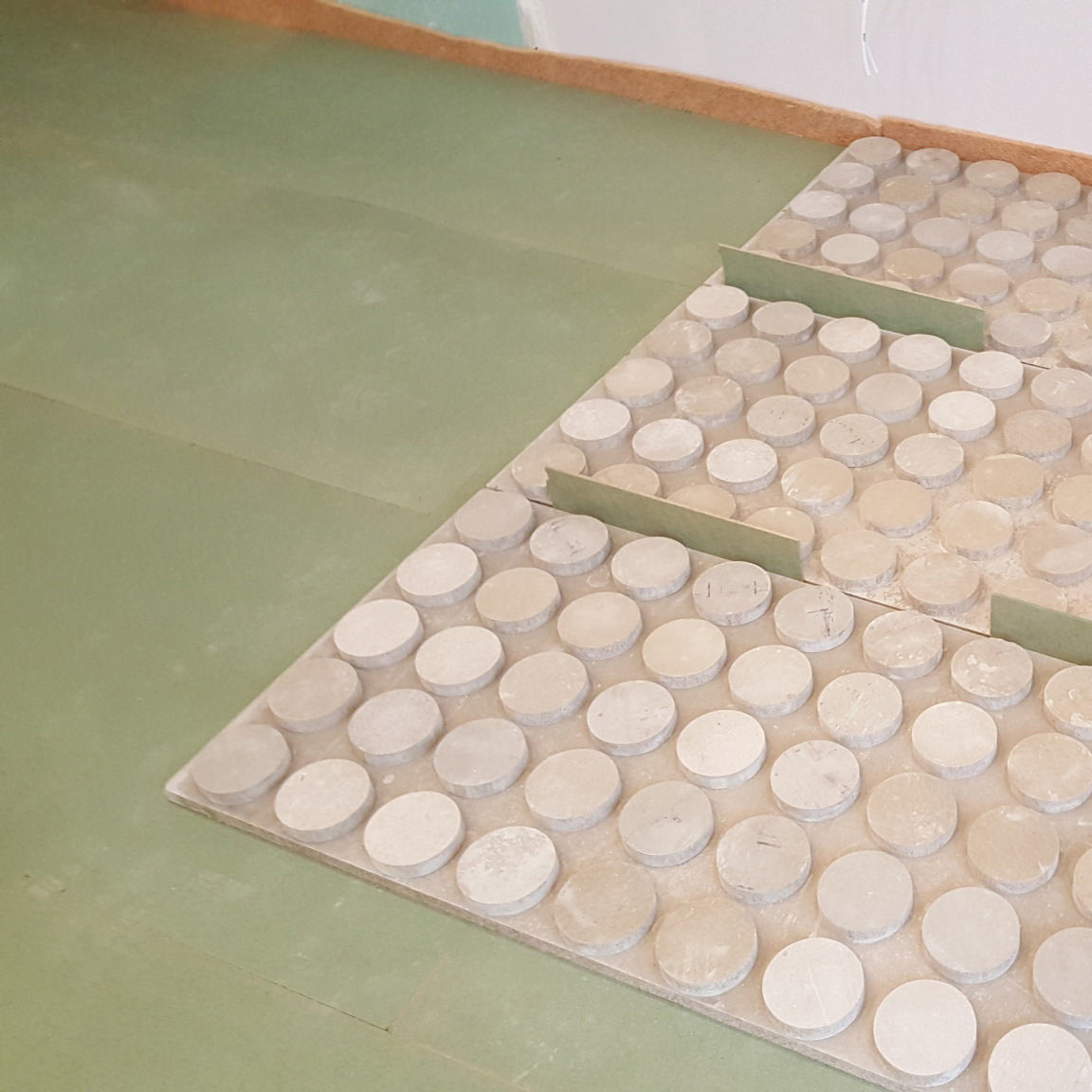

Dry radiant screed with fiber wood Underfloor
Radiant floor BetonRadiant with high compression resistance acoustic insulatio in fiber wood thin mat FiberTherm Underfloor.
Fiber wood dry screed FiberTherm Floor
Fiber wood dry system FiberTherm Floor, fiber wood thin mat FiberTherm Underfloor and cement bonded particle boards BetonWood with high acoustic insulation power.
Elevated radiant screed on loose fiber woods Zell and Underfloor
Radiant screed BetonRadiant with fiber wood Underfloor and BetonWood T&G cement bonded particle boards on loose fiber woods Zell.
Elevated radiant screed with fiber woods Underfloor on support
Elevated radiant screed with Underfloor fiber wood thin mat and BetonWood T&G cement bonded particle boards on self-leveling supports.
Elevated radiant screed with Underfloor on supports and BetonStyr
Elevated radiant screed with Underfloor fiber wood thin mat and BetonWood T&G cement bonded particle boards on self-leveling supports and BetonStyr insulating panels which are cement bonded particle boards coupled with extruded polystyrene XPS.
